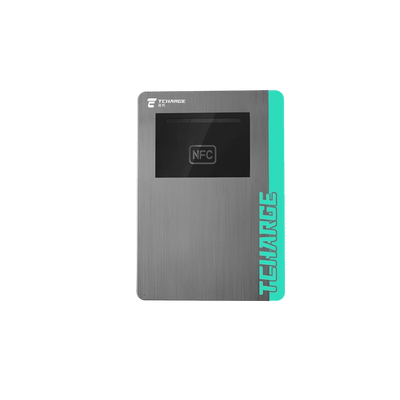

Home Charger UAC 50H

AC Output

Single outlet for 50A

Features

All components come with UL certificate
RFID card reader built in
Supporting mobile APP management
Supporting OCPP(OCPP1.6J) based platform, ideal for residential complex parking
Ethernet & Wi-Fi
4G connectivity as an option
Remote monitor&appointment& diagnosis&upgrade

Applications

Office

From small to large offices, business parks and complexes

Commercial Locations

From hotels to sport institutions and shopping centers

Home

From private homes to multi-tenant homes and residential communities

While parking

While on the street or in a car park

Additional Accessories for Options

Customized cable length
Customized Box color and customized logo

Specifications

Product Information

Output Power Rating & Current Single phase: Type1: 50A

Input Voltage&Frequency Single phase: 208V/240V & 50 / 60 Hz

Standby Power <2w

Charging Outlets Single/double （type1）

Measuring Accuracy Class 1

Protection

Overvoltage/undervoltage protection,
Overload protection, Leakage protection,
Overcurrent protection
Earth Leakage Protection: CCID20
Special Protection: Anti-UV protection

User Interface

Connectivity Ethernet&Wifi (4G as optional)

User Authentication APP or RFID card

User Interface 7 inch LCD touchscreen/LED indicator/RFID

Protocols OCPP 1.6J+

Software Update OCPP 1.6 web portal

General Characteristics

IP and IK Rating IP54

Operating Altitude <2000m

Operating Temperature -30° c～+55° c

Working Humidity 5 %~ 95%

Cooling Natural air cooling

Mounting Wall mounted

Dimensions 16"H*11"W*5"D

Weight 11lb

Cable Length ≥7m(External line)

Shell Material Sheet metal

Certification And Standards

Standard UL 2202,UL2231-2,UL2594
