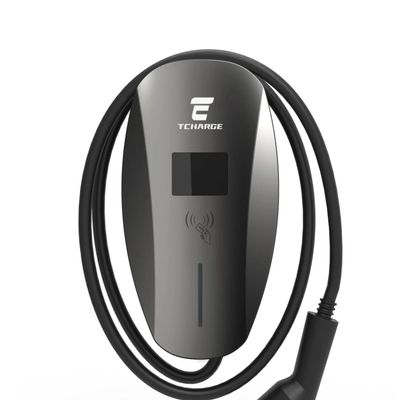

TCHARGE AC Wallbox Charger for Europe: HM10

AC Output:

Single gun for 7/11/22 kW

Features

OCPP1 . 6J+
Type B RCD
3.5 Inch screen .
RFID
APP operation
Wifi or Bluetooth
RS485

Applications

Office

From small to large offices.

Commercial locations

Hotels, sports institutions, business parks and complexes, and shopping centers.

Home

From private homes to multi-tenant homes and residential communities

While parking

While on the street or in a car park

Additional Accessories for Options

Pestle
Customized cable length
Customized box color and customized logo

Specifications

Product Information

Input Power Rating & Current Single phase: Type2: 7kW/32A (230V)

Three phases: Type2: 11kW/16A(400V)

Type2: 22kW/32A(400V)

Standby Power <2w

Charging Outlets Single （Type 2）

Measuring Accuracy Class 1

Protection

Overvoltage/undervoltage protection,
Overload protection, Leakage protection,
Overcurrent protection
Earth Leakage Protection: CCID20
Special Protection: Anti-UV protection

User Interface

Connectivity Wifi or Bluetooth; RS485

User Authentication APP or RFID card

User Interface 3.5 inch screen/LED indicator/RFID

Protocols OCPP 1.6J+

Software Update OCPP 1.6 web portal

General Characteristics

IP and IK Rating IP65

Operating Altitude <2000m

Operating Temperature -30° c ～+55° c

Working Humidity 5 %~ 95%

Cooling Natural air cooling

Mounting Wall-mounted,Floor stand(Optional)

Dimensions H375*W260*T104mm

Weight 5kg （without cable）

Cable Length ≥4 . 8m(External line)

Shell Material Aluminum Alloy

Certification And Standards

Standard CE(TUV)

EN IEC 61851-1
