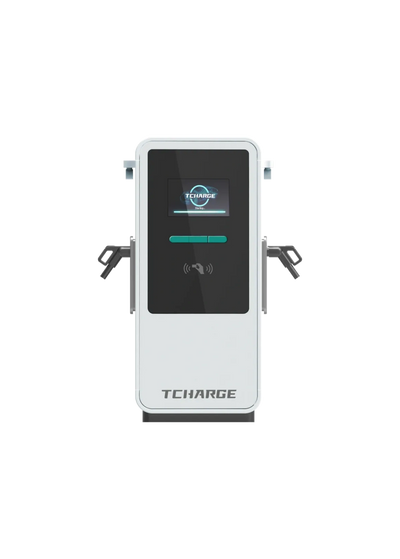

DC Fast Charger For Europe: EDC 240
Features
- Multi-modular design, easy to install
- Compatible with various grounding systems
- Maximum 1000 V output for high voltage battery charging or electric bus charging
- Supports CCS1 ×2; CCS1
- Charging cable management System
- Modular design for ease of commissioning and maintenance
- 10.1”/15.6” LCD Touch Panel (Optional)
- Various contactless payment support Remote diagnosis capability
- ADA compliance
- PnC / OCPP
Features-Software
- Plug and Charge: Automatic authorization recognition for designated customers.
- OCPP Integrations: Full OCPP Integration which include smart charging part.
- Web Service Tool: Remote diagnostics and troubleshooting to minimizing operational costs.
Specification
DC Output current/ connector CCS2: 200A max. / connector,
CHAdeMO: 125A max. / connector
DC Output voltage range 200-1000 V
User interface 10. 1” / 15.6” LCD Touch Panel
Authentication ISO 14443 A + B to part 4 and ISO/IEC
15693 Mifare, NFC(Optional)
Network connectivity 4G, Wi-Fi, Ethernet
Protocol OCPP1.6J
Operating temp. -35 ºC~+55 ºC, derating > +50 ºC
Ingress Protection IP54
Enclosure Protection IK10
Dimension(H×W×D) 800×800×1800 mm W*D*H
(with cable management system H:2000
mm)
Weight <480kg
OCPP Platform
Platform support remoting managerment such as
- Device status monitoring
- Trouble shooting
- Configuration
